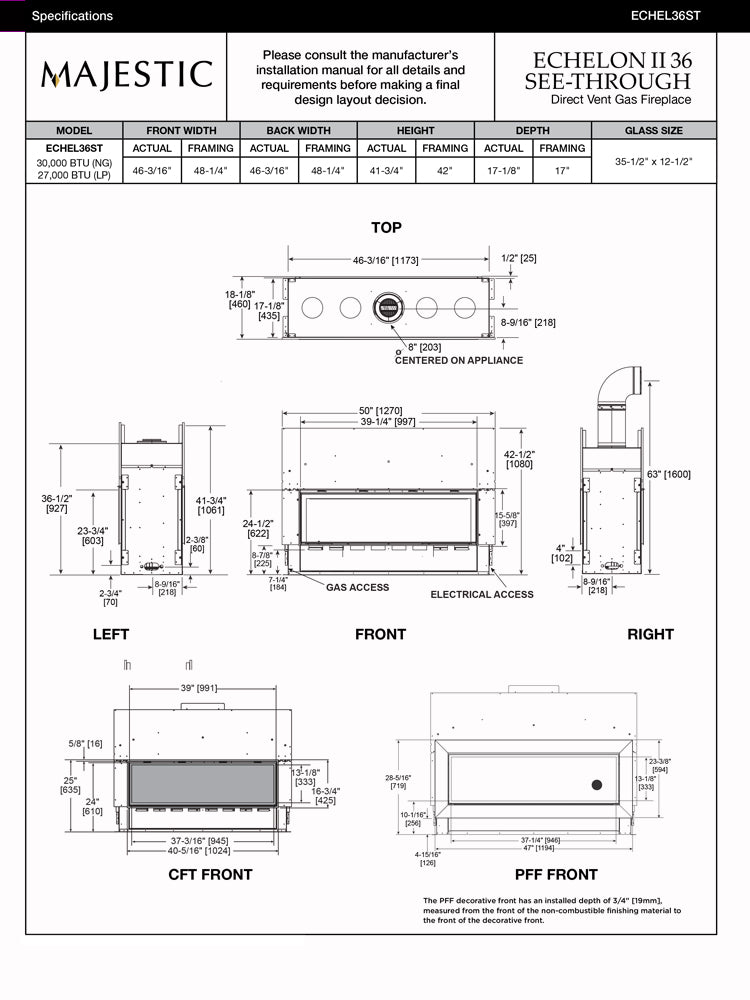

• Dimensions: 46-3/16"W x 41-3/4"H x 17-1/8"D
• Rear Width: 46-3/16"
• Framing Height: 42"
• Framing Depth: 17"
• Framing Front Width: 48-1/4"
• Framing Back Width: 48-1/4"
• Fuel Type: Natural gas or liquid propane by conversion
• BTU/hr Input: 30,000 (NG); 27,000 (LP)
• Heating Capacity: Up to 900 sq ft
• Viewing Area: 35-1/2 x 12-1/2"
• Showcase the interior with glass illuminated by LED lights
• Customize the interior with Reflective Black Glass panels, driftwood logs, natural stones and glass firebed options
• IntelliFire® touchscreen remote comes standard; add the IntelliFire app or wireless wall switch for the solution that fits your life
• Optional heat distribution systems direct warmth to more areas of the home
• Single-sided available in 36”, 48”, 60” or 72” models
• See-through available in 36” or 48” models

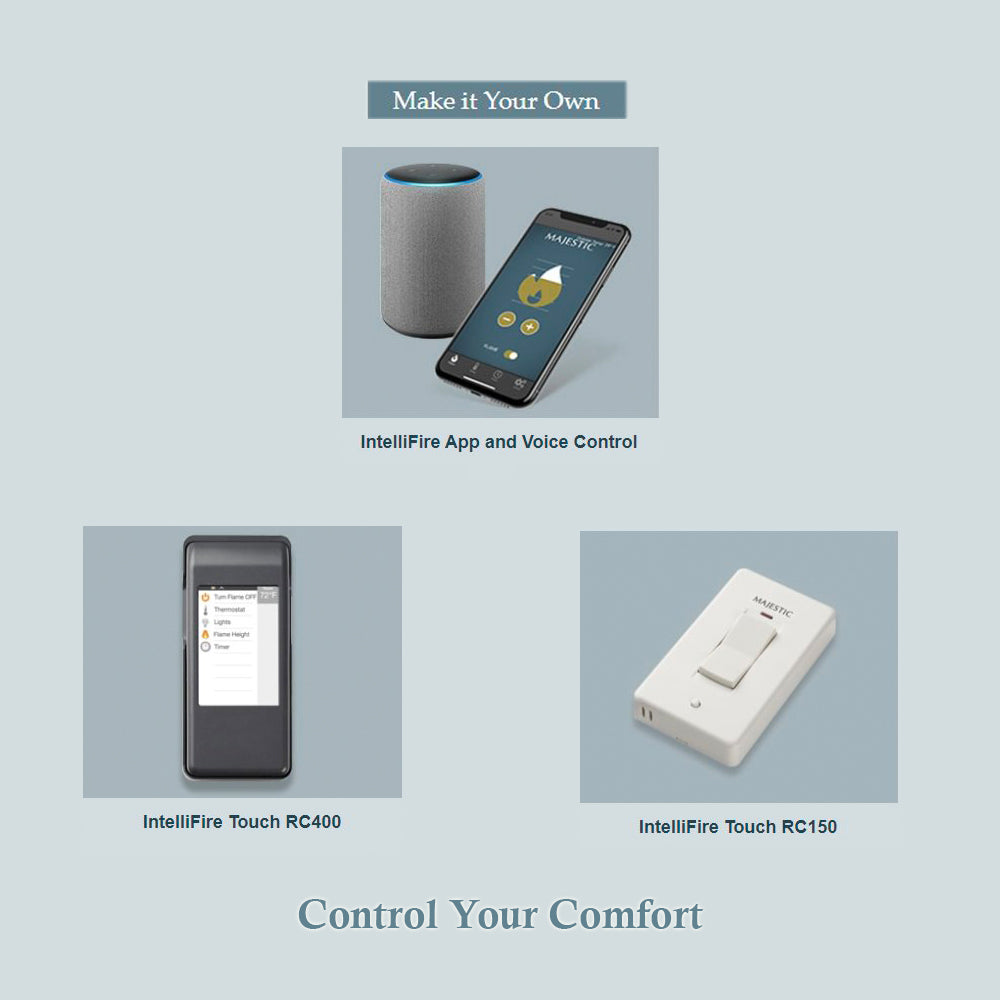

• Control your comfort
• INTELLIFIRE APP – All the features of a remote control with an app installed on your smart device. Monitor your fire from anywhere or even control it with the sound of your voice. IntelliFire is compatible with voice assistants Amazon Alexa and Google Assistant.
• TOUCHSCREEN REMOTE – Features: on/ off, flame height adjustment, fan speed, lights adjustment, thermostat mode, room temperature readout, child lock, timer mode, battery backup, cold climate mode, power vent, wall docking station (fan, lights and power vent are dependent on your fireplace).
• WIRELESS WALL SWITCH – Features: on/off, battery strength indicator, cold climate mode

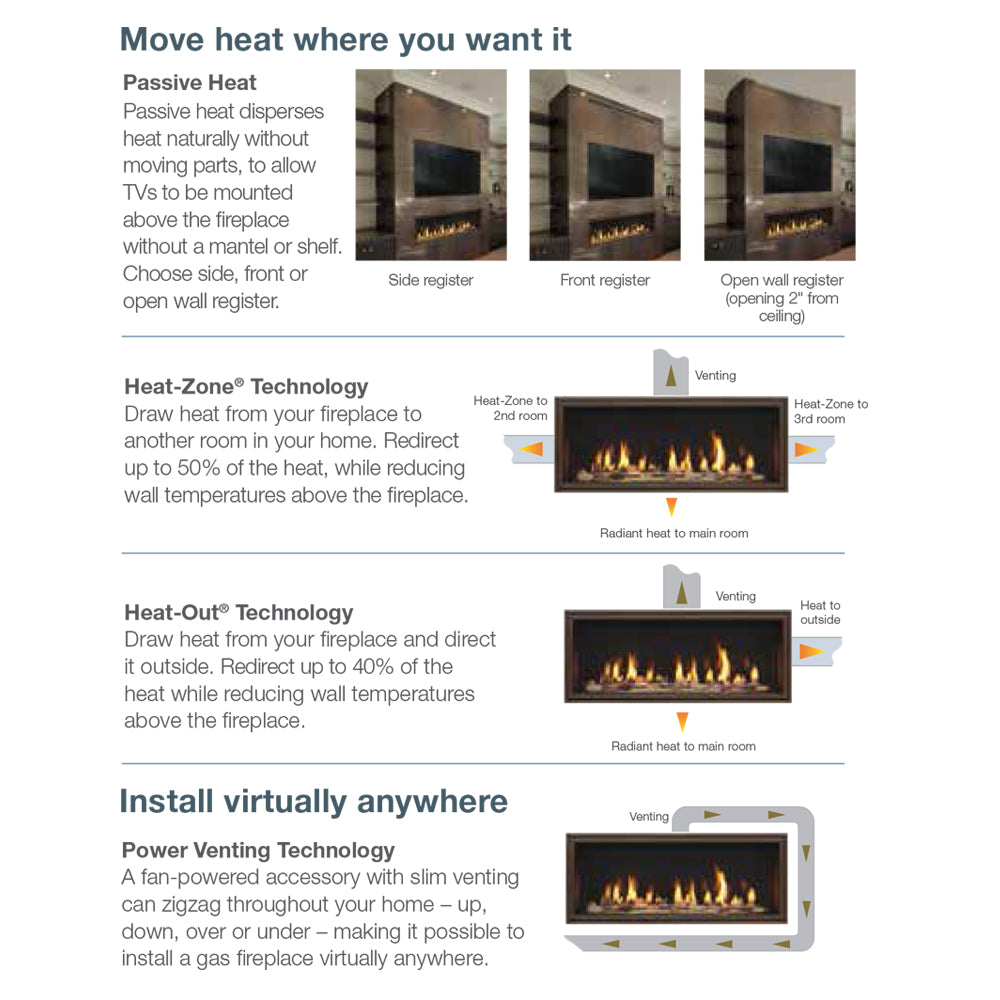

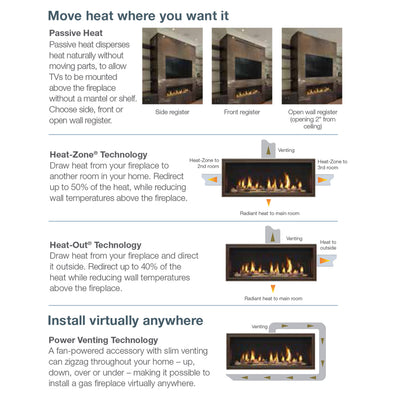

• Move heat where you want it
• PASSIVE HEAT:  Passive heat disperses heat naturally without moving parts, to allow TVs to be mounted above the fireplace without a mantel or shelf. Choose side, front or open wall register.
• HEAT ZONE® TECHNOLOGY: Draw heat from your fireplace to another room in your home. Redirect up to 50% of the heat, while reducing wall temperatures above the fireplace.
• HEAT OUT® TECHNOLOGY: Draw heat from your fireplace and direct it outside. Redirect up to 40% of the heat while reducing wall temperatures above the fireplace.
• Technology
• INTELLIFIRE TOUCH®IGNITION SYSTEM - IntelliFire Touch is our most advanced intermittent-pilot ignition (IPI) system, making operating your appliance simple, smart and safe. Select from the IntelliFire app, touchscreen remote or wireless wall switch for the solution that fits your life.
• DIRECT VENT TECHNOLOGY- Direct Vent fireplaces remove 100% of combustion exhaust and odors from your space. These sealed fireplaces provide optimal heat, conserve energy and ensure clean indoor air quality.
• Install virtually anywhere
• POWER VENTING TECHNOLOGY - fan-powered accessory with slim venting can zigzag throughout your home – up, down, over or under – making it possible to install a gas fireplace virtually anywhere.

• 17,500 - 30,000 Btu/Hour Input (NG)
• 15,000 - 27,000 Btu/Hour Input (LP)
• Clear LED dimmable lights
• RC400 remote control
• Battery backup
• Crushed Glass: 3 bags of glass
• Ceramic glass
• Standard bronze glass media
• IntelliFire Touch ignition system
• If changing media, follow required number of bags below:
• Natural stones: 2 bags of stone
• Log set & stones: 1 bag of stone

The process of creating memories often begins with a significant event or experience. The exceptional Echelon II series gas fireplace offers a comfortable and enjoyable environment to unwind in. Its contemporary design features dynamic flames and customizable interior options, giving it a distinct appearance. Immerse yourself in the hypnotic glow of the fire and the shimmer of the illuminated glass. Return home to the Echelon II series gas fireplace, available in both single-sided and see-through models, and indulge in the entertainment and intimacy that you deserve.
